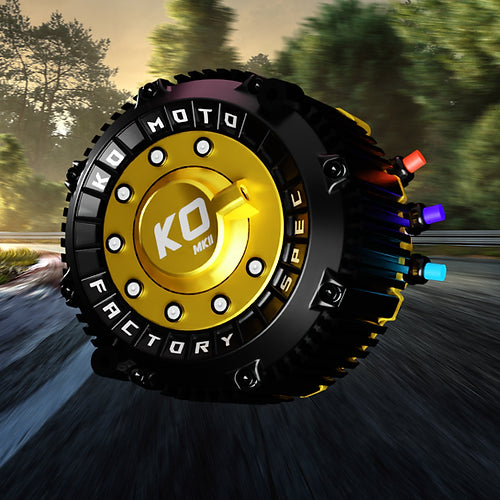

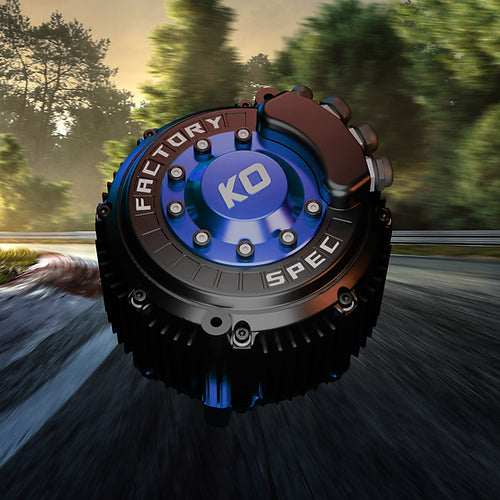

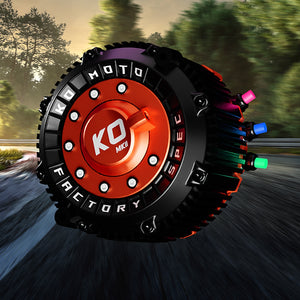

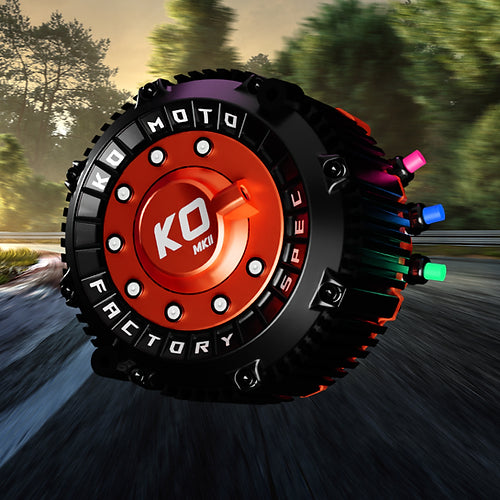

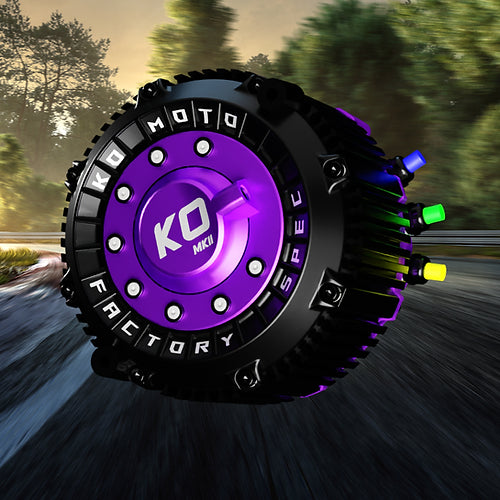

The KO Factory Spec Motor is a premium, limited edition high-performance upgrade for Sur-Ron Light Bee and Talaria Sting electric bikes. Designed as a direct bolt-on replacement, this motor features a higher KV wind, European-sourced magnets, and a stunning laser-etched anodized finish for serious riders who want both performance and aesthetics.
Built on KO Technologies’ industry-leading IPM platform, the Factory Spec Motor includes cryo-treated internals, a pressure equalization system, and advanced thermal management to ensure maximum efficiency and durability under load. Whether you’re racing, climbing, or customizing a next-level build, this motor is built to deliver unmatched torque, speed, and control.
Key Features:
-
Factory Spec Edition with upgraded KV wind and imported European magnets
-
Direct drop-in fit for Sur-Ron Light Bee & Talaria (no modifications required)
-
High-performance 35kW peak output (dependent on battery setup)
-
CNC-machined 7075 billet end caps and sensor cap
-
Motorcycle-grade anodized finish for heat dispersion and durability
-
KO Cryo Cold Air Injection & Pressure Equalization system compatible
-
IP69 waterproof hall sensor with 12-month moisture damage warranty
Technical Specs:
-
Motor Type: Internal Permanent Magnet (IPM)
-
Voltage Range: 48V–100V
-
Stator Size: 160mm x 53mm
-
Max Torque @ 60V: 55Nm
-
Max Stable Rotor RPM: 12,000
-
Max Efficiency: 97%
-
Shaft: Cold-rolled SAE 1045 steel
-
Bearings: SKF or equivalent sealed units
-
Rotor/Stator: Cryo-treated, anti-corrosion coating
-
Air Gap: 1.5mm (industry-leading)
-
Windings: Hand-wound, 220°C high-temp copper
-
Weight: 10kg (including wires)
