Naraku 52.4mm Performance Cylinder (Incomplete) is designed for QMB139 50cc/49cc engines as a high-quality performance upgrade. This listing includes the cylinder only, along with piston, wrist pin, bottom gasket, and seals

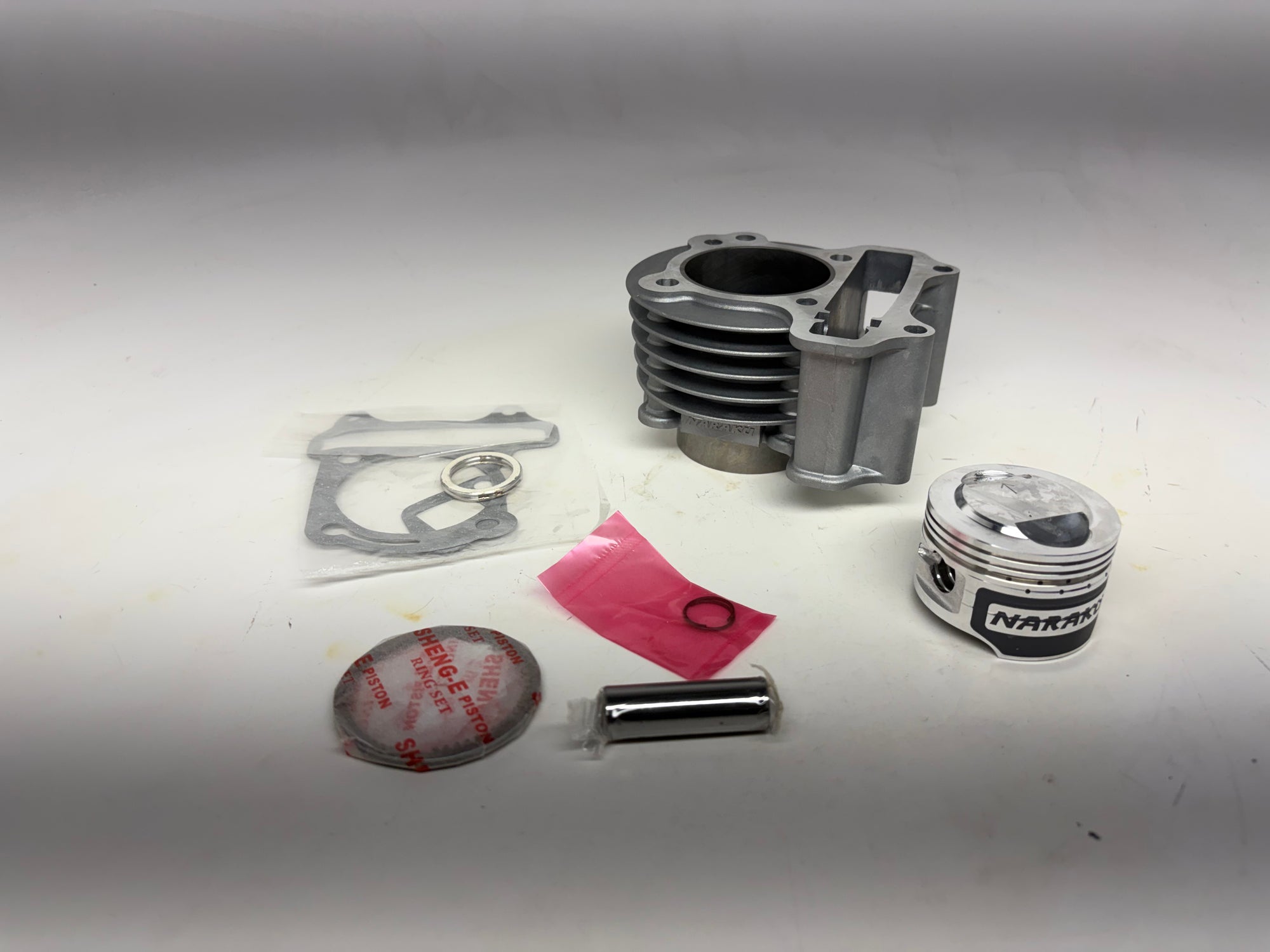

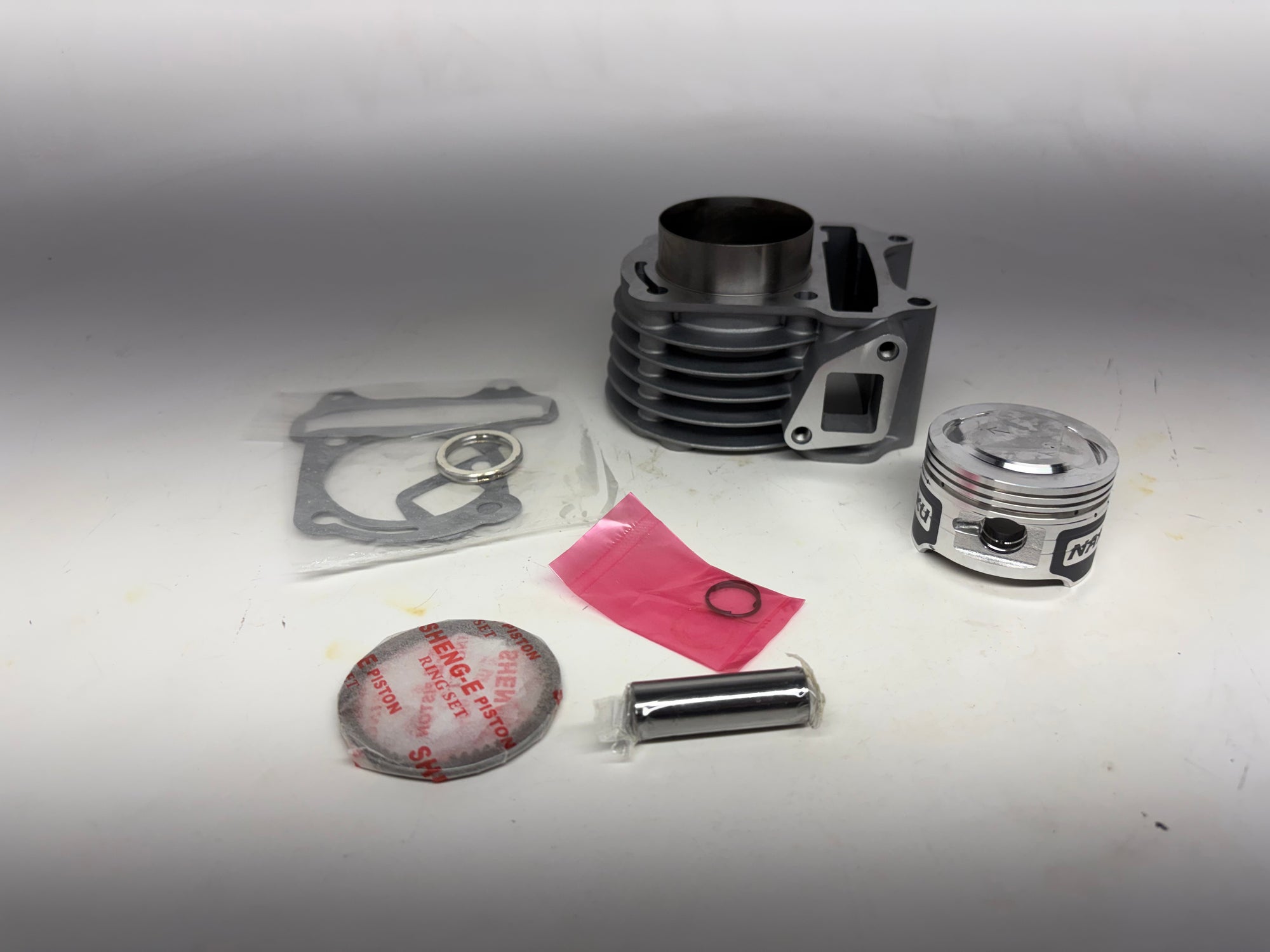

SEE PHOTO FOR ALL INCLUDED PARTS
When paired with a stock 41.4mm stroke, this setup yields a displacement of 89.3cc, offering a noticeable boost in power and torque. When used with a 44mm stroker crank, displacement increases further to 94.9cc.
Ideal for those upgrading an existing top-end setup or replacing a damaged cylinder while retaining a performance piston and gasket package.
Features:
-
Genuine Naraku Performance Cylinder (Incomplete)
-
Includes: Cylinder, piston, wrist pin, bottom gasket, and seals
-
Upgrades QMB139 engines from 49cc to 89.3cc (stock stroke) or 94.9cc (stroker)
-
Compatible with short-style 64mm valves
Specifications:
-
Bore: 52.4mm
-
Outer Sleeve Diameter: 54.4mm
-
Wrist Pin: 13mm
-
Total Piston Height: 36.3mm
-
Compression Height: 20mm (center of wrist pin to top edge of piston)
-
Intake Valve: 23mm
-
Exhaust Valve: 20mm
-
Intake Port Diameter: 20.8mm
-
Exhaust Port Diameter: 18.7mm
-
Valve Style: Short 64mm Valve Stems
-
Fits: QMB139 50cc/49cc engines (various makes/models)
Notes:
-
Cylinder only (incomplete) – includes piston, wrist pin, bottom gasket & seals only.
-
May require engine case modification to fit larger 52.4mm bore.
-
Designed for use with non-emissions style heads.
-
Not intended for use on public roads or land.
